Adam ® Server family

Model

R822N5

Model

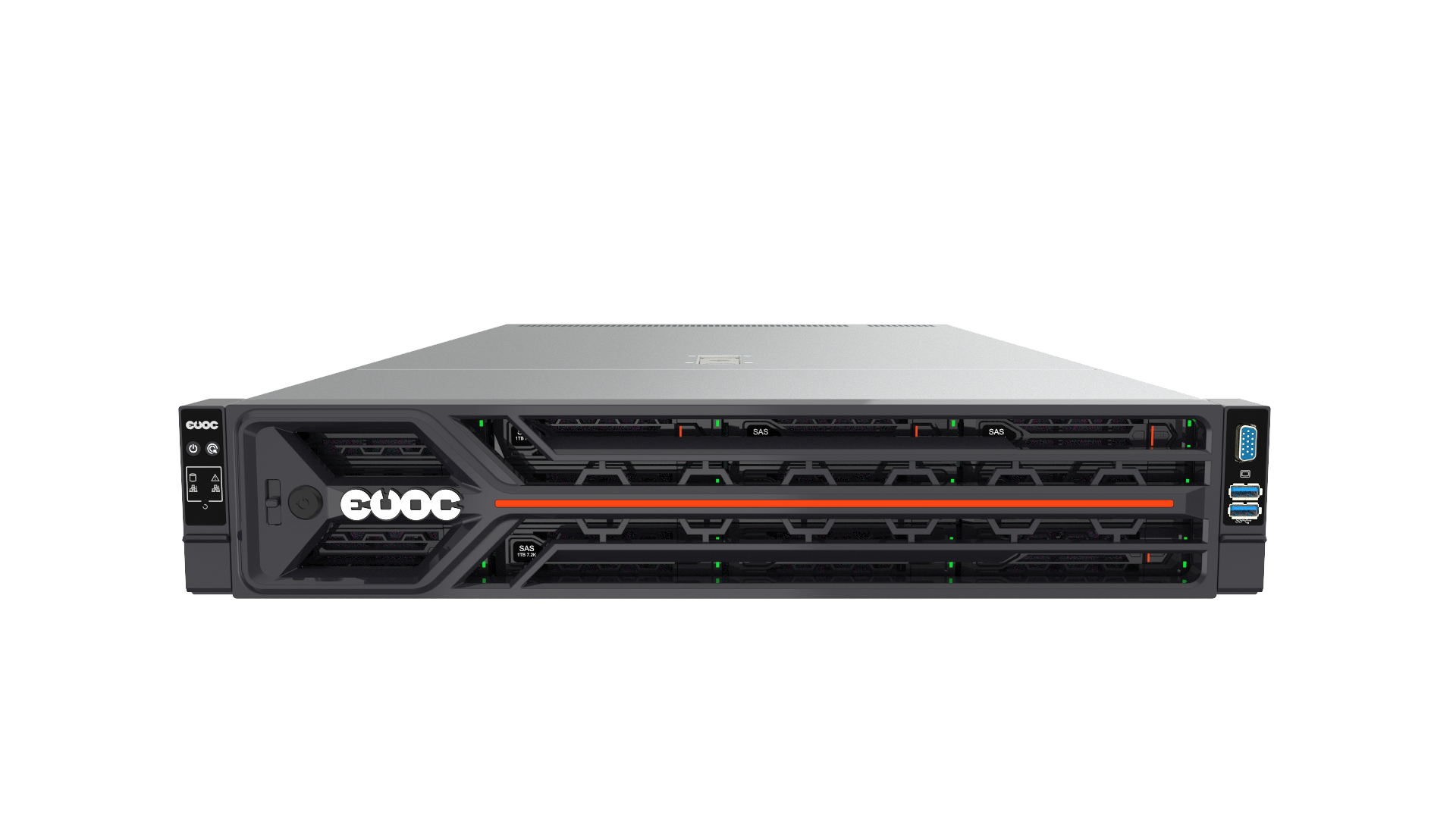

2U 19 inch rack mounted server

Processor

Supports 2 Intel chips ® The second generation of the strongest ® Scalable processor

Chipset

Intel C621 chipset

Memory

Supports 24 DDR4 memory slots, RDIMM and LRDIMM memory, with a maximum frequency of 2933MHz

Storage

Front end support for 8 2.5 "NVMe hard drives

Built in 2 M.2 interfaces

Rear optional maximum support for 4 2.5 "hard drives, optional support for SAS/SATA

I/O interface

front 2 USB interfaces, optional 1 VGA interface

Rear 2 USB ports, 1 VGA port, 1 Gigabit management network port, and 1 optional serial port

RAID support

Supports multiple storage solutions such as pass through, RAID0/1/10/5/50/6/60, etc

When configuring a RAID controller, it supports Cache supercapacitor protection and provides functions such as RAID state migration and RAID configuration memory

PCIe Expansion

Supports up to 10 PCIe 3.0 expansion slots, including 1 OCP slot

GPU support

Supports 2 dual width GPU cards (please consult with Billion Gram business personnel for specific GPU types)

System management

Integrated BMC chip, supports IPMI2.0 SOL、KVM Over IP、 Advanced management functions such as virtual media

Provide 1 1Gbps RJ45 management network port that supports NCSI functionality

Network

2 GE onboard business network ports

1 Gigabit RJ45 management network port

Provide 1 OCP interface, supporting expansion of multiple network interfaces such as dual port 2GE, dual port 10GE, dual port 25GE, etc

System fan

Standard hot swappable redundant fan

Power supply

Supports 550W/800W/1200W hot swappable 1+1 redundant platinum power supply

Working temperature

5 ℃~35 ℃

Storage and transportation temperature

-40 ℃~70 ℃

OS

Microsoft Windows Server 、Red Hat Enterprise Linux 、SUSE Linux Enterprise Server、CentOS、Vmware ESXi、Ubuntu Wait (for specific OS versions, please consult with YiYiKe business personnel)
