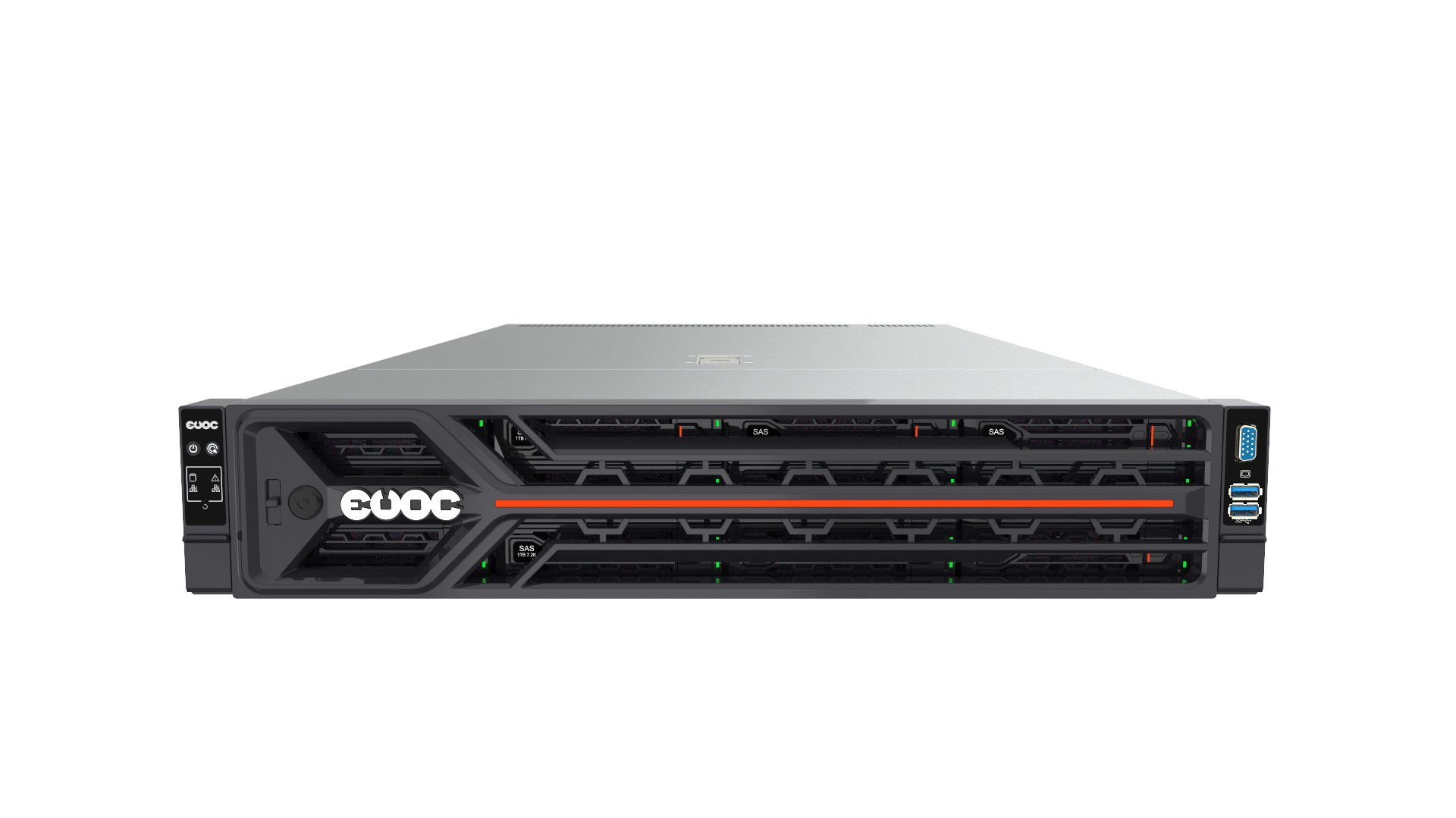

Adam ® Server family

Model

R322N7+

Form

2U 19 inch rack mounted

Processor

Supports 2 Intel chips ® The fourth/fifth generation of the strongest ® Scalable processor

Chipset

Intel C741 chipset

Memory

Supports 32 DDR5 memory slots, up to 5600MHz ECC RDIMM/3DS RDIMM

Storage

Front end supports up to 12 3.5-inch SAS/SATA hard drives

Rear support for up to 4 2.5-inch SAS/SATA/NVMe hard drives (optional module)

I/O interface

front 2 USB interfaces, 1 VGA interface

Rear 2 USB ports, 2 VGA ports, 1 RJ45 serial port, 1 RJ45 system management port, 2 RJ45 electrical ports

RAID support

optional

SAS HBA card, supports RAID 0/1/10

SAS RAID card, supports multiple storage solutions such as RAID0/1/10/5/50/6/60, Cache supercapacitor protection, and provides functions such as RAID state migration and RAID configuration memory

PCIe Expansion

Supports up to 8 PCIe 4.0 expansion slots and 2 PCIe 5.0 expansion slots, excluding OCP

GPU support

Supports up to 2 dual width GPU cards (please consult with Billion Gram business personnel for specific GPU types)

System management

Integrated BMC chip, supports IPMI2.0 SOL、KVM Over IP、 Advanced management functions such as virtual media

Provide 1 Gigabit RJ45 management network port that supports NCSI functionality

Network

Onboard 2 Gigabit RJ45 business network ports

Provide 1 Gigabit RJ45 management network port

Provide 1 OCP3.0 interface, supporting expansion of multiple networks such as dual port 1G RJ45, dual port 10G, dual port 25G, dual port 100G, and 200G

System fan

Standard hot swappable redundant fan

Power supply

optional 1300W/1600W/2000W/2400W/2700W CRPS high-efficiency 1+1 redundant platinum power supply

Working temperature

5 ℃~35 ℃

Storage and transportation temperature

- 40℃～70℃

OS

Microsoft Windows Server、Red Hat Enterprise Linux SUSE Linux Enterprise Server、CentOS、Vmware ESXi、Ubuntu Wait (for specific OS versions, please consult with YiYiKe business personnel)
